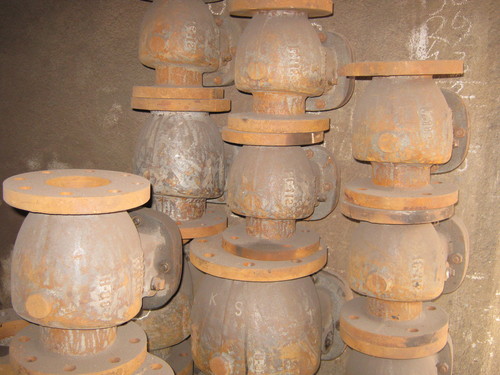

Rubber Non Return Valve

Rubber Non Return Valve
Rubber Non Return Valve
Send Inquiry
Product Code : RNRV-15
Brand Name : Mondal Brothers
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • -
Product Description

We are a trustworthy manufacturer and supplier of a qualitative range of Rubber Non Return Valve that is able to control high pressure. In order to design this valve, we use optimum quality raw materials and advanced technology in adherence with the international quality standards. Owing to its high durability, corrosion resistance and dimensional accuracy, this valve is widely acclaimed by the clients. We offer this Rubber Non Return Valve to the clients in different specifications at the most affordable price range.

Non Return Valves mainly used in water line to control the flow of water. It help the water to flow in one direction. It stop the flow automatically when it goes to opposite direction. These type of vales operate automatically there is no need of human effort. These valves generally designed to IS 5312 Part I/2004 PN-1.6 Pr. Rating, standards for dimensions. All materials of construction and constructional features shall be strictly follow as per the need of the customer. The speciality of this product is we attached two additional G.M Bush at the end of both side of Hinge Pin. By that the Products are more Long-lasting.

Size we produce: 50MM Dia - 350MM Dia Valves.

Our production capacity :100-150 Piece in a month.

 Materials of construction we used in our product :-

  • Body, Bonnet, Door : Cast Iron to IS:210 Gr.Fg.200. Or Ductile Iron.
  • Seat Rings of Body : Leaded Tin Bronze to IS:318 LTB 2. Or S.S. AISI-304
  • Flap Ring(For Metal to Metal) : Leaded Tin Bronze to IS:318 LTB 2. Or S.S. AISI-304
  •  Flap Rubber(For Rubber Seated) : Rubber, IS:638 Type-B.
  • Flap Plate(For Rubber Seated) : S.S. AISI-304
  •  Hinge Pin : 13% Cr. S.S. AISI-410.
  • Bush : Leaded Tin Bronze to IS:318 LTB 2.
  • Gasket : Rubber, IS:638 Type-B.
  • Bolts & Nuts : Carbon Steel to IS:1367 CL-4.6 & 4.0.

Features:

  • Rust resistance

  • Robustness

  • Optimum strength

  • Precise dimension





Trade Information
  • Payment Terms
  • Others, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cheque
  • Delivery Time
  • 10-15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Wooden Boxes or as per customer requirement.
  • Main Domestic Market
  • All India
